In today’s fast-paced world of technology and innovation, product designers are constantly looking for solutions that can reduce size without sacrificing performance. This is especially true in fields such as industrial automation, smart electronics, automotive design, and medical devices, where components need to be small, reliable, and capable of withstanding harsh environments. Mini waterproof connectors serve exactly this purpose — compact electrical connectors that ensure reliable signal and power transmission even in conditions involving water, dust, and vibration.
At Dongguan Suyi Electronics Co., Ltd., we specialize in the design and manufacturing of waterproof connectors and cables that meet the highest standards for performance and durability. With years of expertise and a strong reputation in the field, our solutions are built to serve a wide variety of industries. Our range of mini waterproof connectors, such as the M8 waterproof connector and M12 waterproof connector, deliver dependable connectivity in the tightest spaces, helping engineers build more compact, efficient systems.
What Defines a Mini Waterproof Connector?

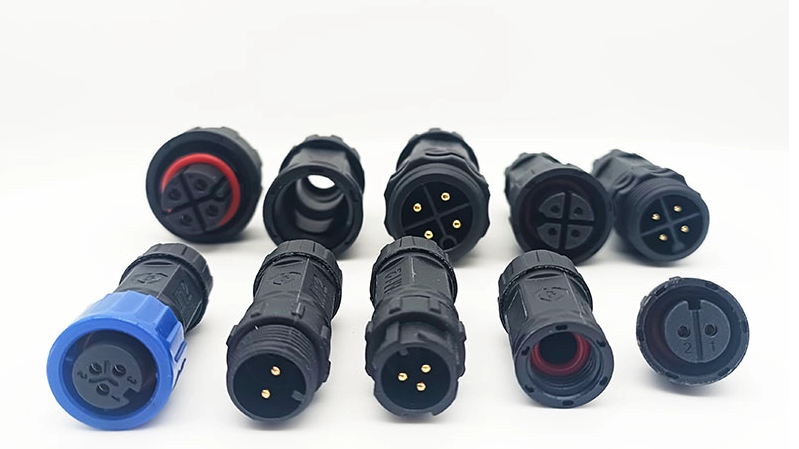

A mini waterproof connector is typically defined by its reduced physical dimensions and its ability to create a sealed, protected electrical connection in challenging environments. These connectors are essential when space is limited and the risk of moisture or contaminants is high. The key characteristics include:
Small size: Typically ranging from M6 to M12 in diameter, mini waterproof connectors are compact enough to be used in tight spaces while still offering multiple pin configurations for power and signal.
Durability: Despite their size, these connectors are made from tough materials like nylon and metal to withstand mechanical stress and repeated connections.
Flexibility: At Suyi Electronics, our mini connectors can be customized in terms of pin count, shape, and connection method (threaded lock, quick lock, injection-molded, screw lock, etc.) to meet specific application needs.
For example, compared to a larger M19 waterproof connector, the M8 waterproof connector is ideal for applications that demand high-density installations and minimal wiring bulk. Yet, despite its size, it retains full IP67/IP68 waterproof protection.
How Do Mini Waterproof Connectors Ensure Effective Waterproofing?
Effective waterproofing in mini connectors is the result of both smart design and high-quality materials. At Suyi Electronics, each waterproof connector is engineered to provide dependable sealing through:
Precision engineering: Components are tightly fitted, with minimal tolerance for gaps that could allow water or dust intrusion.
High-quality sealing materials: Our connectors often use silicone or rubber O-rings, gaskets, and molded plastics to ensure water-tightness. These materials are resistant to environmental degradation and maintain elasticity over time.
Protective housings: The connector housings are made from corrosion-resistant metals or high-strength polymers to endure prolonged exposure to moisture, UV rays, and chemical contaminants.

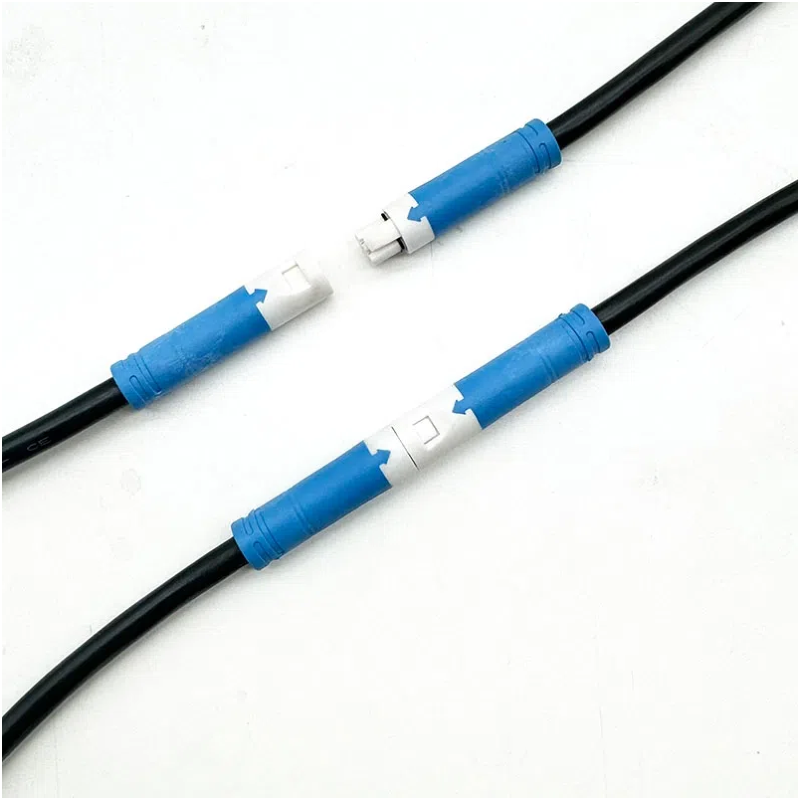

For instance, our M12 waterproof connector series includes versions with injection-molded waterproof connector wires, where the cable and connector are fused together during production. This eliminates any open or vulnerable junctions and makes the entire unit waterproof, flexible, and highly durable.
Such design elements are especially important in outdoor lighting systems, IP cameras, and marine equipment, where long-term exposure to environmental elements is common.
What Are the Common Applications of Mini Waterproof Connectors?
Mini waterproof connectors are incredibly versatile and used across a wide range of industries. Their compact size and high resistance to moisture and dust make them ideal for applications including but not limited to:
Automotive and transportation: Mini waterproof connectors are widely used in vehicle electronics, from sensors to LED lights and dashboard systems. In electric vehicles and hybrid cars, where compact and weatherproof wiring is essential, our M8 connectors provide both performance and ease of integration.
Consumer electronics and smart devices: Waterproof connectors play a key role in wearables, fitness trackers, and portable electronics that may be exposed to sweat, rain, or accidental spills.
Medical devices: In medical equipment such as diagnostic monitors, infusion pumps, and handheld tools, waterproofing is crucial for hygiene and safety. Our small form factor connectors support compact system design while ensuring protection against liquids and sterilization processes.
Industrial automation and robotics: High-precision sensors, actuators, and control modules require mini connectors that can fit into control cabinets or moving parts while withstanding vibration and industrial contaminants.
LED lighting systems: In architectural and outdoor lighting, mini waterproof connectors ensure power delivery in a compact form that easily integrates into design elements.
Thanks to their compact design, these connectors can be used where traditional connectors would be too large or cumbersome. Our customizable range of connector sizes — from M6 to M19 — offers options for every use case, while various mounting and locking mechanisms ensure easy installation and maintenance.
How Do Mini Waterproof Connectors Enhance Performance and Longevity?
Performance and longevity are critical considerations in electrical design, and mini waterproof connectors contribute significantly in both areas. Here’s how:
Moisture and dust resistance: All of our connectors meet IP67 or IP68 waterproof ratings, which means they can be submerged in water for extended periods and still maintain full electrical function.
Vibration and shock protection: The secure locking mechanisms in our threaded or quick-lock connectors prevent disconnection and signal interruption, even in high-vibration environments such as automotive engines or industrial machines.
Temperature resilience: Made from heat-resistant materials, our connectors can function in environments ranging from -40°C to 85°C, making them suitable for both indoor and outdoor installations.
Reduced maintenance: With high-quality materials and sealed designs, our connectors reduce the chance of corrosion, short circuits, and mechanical failure. This means fewer replacements, less downtime, and lower operating costs.
For example, our M12 waterproof connectors are built for industrial-grade performance and can be fitted with waterproof connector wire options for custom assemblies. These ensure reliability over long-term use, even in challenging environments like food processing plants, mining operations, or outdoor telecom cabinets.
By choosing high-performance mini waterproof connectors, companies can improve the operational reliability of their products while also ensuring longer lifespan and easier servicing.
Conclusion
Mini waterproof connectors offer the perfect solution for compact yet rugged designs. Whether your application involves medical precision instruments, automotive electronics, or smart outdoor systems, these connectors bring space-saving efficiency, robust sealing, and long-lasting performance. Dongguan Suyi Electronics Co., Ltd. provides a wide range of high-quality waterproof connectors, including M8, M12, and M19 models, all available in different materials and assembly options to meet your specific requirements. Our products combine engineering precision with industrial toughness — everything your compact design needs to stay protected and connected.
Contact Us
Looking to find the right waterproof connector solution for your project? Get in touch with Dongguan Suyi Electronics Co., Ltd. today. Our experienced team will help you select or customize the perfect mini waterproof connector for your application.
