Modern factories need reliable connections for sensors, machines, and data systems. An M12 Connector provides secure performance in demanding industrial environments. This article explains what it is used for today and covers its key applications, features, connector types, and selection factors.
What Is an M12 Connector?
An M12 Connector is a compact circular industrial connector. The name comes from its M12 threaded coupling interface. It usually connects sensors, actuators, controllers, motors, or communication equipment. The threaded coupling creates a secure mechanical connection and helps prevent accidental separation during vibration or equipment movement.
Many industrial M12 connector products also provide IP67 protection, while some designs offer even higher environmental protection. Manufacturers provide male, female, panel-mount, cable-mounted, straight, and angled designs. This flexibility allows engineers to use one connector family across many machines.
M12 connectors can also carry different electrical functions. Depending on coding and configuration, they can transmit:
Sensor signals
Control signals
Industrial Ethernet data
Electrical power
Mixed industrial communication
This range explains why M12 circular connectors remain important in modern industrial systems.
Note: M12 Connector coding determines compatibility. Similar-looking connectors may support completely different electrical functions.
What Is an M12 Connector Used For Today?
The main purpose of an M12 Connector is reliable industrial connectivity. Its actual role depends on the machine, coding, pin configuration, and cable design. Today, M12 connectors are widely used across automation equipment, sensors, robotics, industrial networks, power systems, and harsh environments.
Industrial Automation and Factory Equipment
M12 connector applications are especially common in automated production systems. Modern production lines include sensors, controllers, motors, switches, and robotic equipment, all of which need dependable connections during continuous operation. M12 connectors provide compact connections near machines and production equipment, while their threaded structure helps resist movement and vibration.
Waterproof M12 products are also available for wet production environments. Typical factory applications include:
Conveyor systems
Packaging machinery
Assembly equipment
Material handling systems
Automated inspection equipment
Machine control systems
An M12 connector in industrial automation can simplify machine installation and allow components to be replaced without redesigning complete cable systems.
Tip: Check equipment connection standards before ordering M12 assemblies for an automation project.
Sensors and Actuators
Sensors are among the most familiar M12 connector applications. Factory sensors constantly collect information from equipment and production processes. They may detect position, distance, pressure, temperature, or object presence, so they require stable power and signal connections.
M12 sensor connectors provide a compact interface for proximity sensors, photoelectric sensors, pressure sensors, temperature sensors, position sensors, and industrial switches. M12 connectors are also useful for actuators, which convert control signals into physical machine actions. Common examples include valves, solenoids, grippers, and other motion components.
A suitable M12 connector for sensors and actuators can simplify field wiring and support faster maintenance when devices require replacement.
Robotics and Motion Systems
Industrial robots operate in demanding mechanical environments. Their cables may experience vibration, movement, bending, and repeated operating cycles. Loose connections can create machine faults or unexpected downtime, so reliable connector performance is essential.
M12 connectors help create stable connection points around robotic systems. They can connect robotic sensors, control modules, end-of-arm devices, motion equipment, safety components, and auxiliary devices. An M12 connector for robotics should match both electrical and mechanical requirements.
Cable routing also matters in moving systems. Angled connector designs can help in restricted installation spaces and reduce unnecessary cable stress.
Industrial Ethernet and Data Communication
Modern factories use more connected machines than earlier production systems. Sensors, PLCs, controllers, and monitoring platforms exchange increasing amounts of information, which has expanded M12 Ethernet connector applications.
D-coded M12 connectors are widely associated with industrial Ethernet connections and are commonly used for Ethernet, EtherNet/IP, and PROFINET systems. X-coded M12 configurations can support higher-performance industrial data systems.
These rugged interfaces are useful where standard office connectors may struggle. Factories can expose connections to vibration, dust, liquids, and mechanical impact, so an industrial M12 connector provides a more robust interface for these conditions.
Power and Control Connections
Not every M12 Connector only carries signals. Some configurations are designed for industrial power transmission, while others carry both control functions and equipment power.
These applications may include:
Motors
Control modules
Distributed equipment
Machine accessories
Industrial lighting
Field devices
The electrical rating must match the connected equipment. Engineers should verify voltage, current, contact count, and coding before selection. A power connector should never be selected based only on its physical size.
Harsh and Outdoor Environments
One major M12 connector benefit is environmental resistance. Factories are rarely clean office environments, and connections may face water, dust, coolant, oil, vibration, and repeated cleaning.
Many M12 products use sealed designs for these conditions. IP67 waterproof M12 connector configurations are common in industrial automation, while some designs provide even higher protection levels. This makes them useful in outdoor machinery and exposed automation systems.
However, protection depends on correct mating and installation. An IP-rated connector can lose protection after incorrect assembly.
Note: Always evaluate the entire connection system, including cable entry, mating connector, and sealing components.
Space-Limited Installations
Industrial machines often have limited installation space. A straight connector may not fit behind a sensor or panel, so right-angle M12 connectors provide another routing option.
They direct the cable sideways instead of straight outward, which can reduce cable bending near equipment. They may also simplify installation inside compact machine areas. This configuration flexibility is especially useful in dense automation layouts.
Key Features of an M12 Connector
M12 connectors remain widely used because their design combines compact size, secure locking, environmental protection, and flexible electrical options. These features make them suitable for many industrial systems.

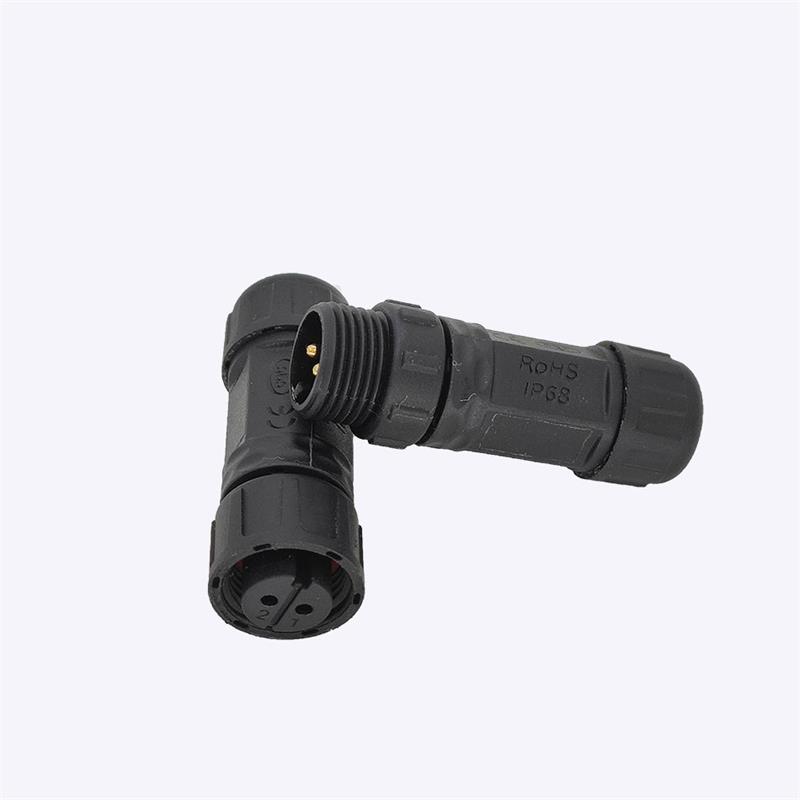

Waterproof and Dust-Resistant Construction
Many industrial M12 products provide sealed connections. IP67 is common among rugged industrial configurations and can help protect contacts against dust and temporary water exposure.
This protection is especially valuable around outdoor systems, wet production areas, and equipment exposed to regular cleaning.
Secure Threaded Locking
The threaded locking system is another major advantage. It helps maintain connection stability during vibration and differs from connectors that rely mainly on friction.
Secure locking can be valuable on conveyor systems, robotics, heavy machinery, automated equipment, and mobile industrial systems. A correctly tightened connection also supports consistent environmental sealing.
Compact Industrial Form
The M12 format provides robust connectivity without requiring large installation space. That balance is useful near compact sensors and control equipment.Engineers can place connections close to field devices, while maintenance teams can replace components more efficiently.
Multiple Coding Options
M12 is not one universal electrical interface. Different coding systems separate different functions. Common options include A-code, D-code, X-code, and power-focused configurations.The coding helps reduce incorrect mating and allows one connector format to support many industrial systems.
Tip: Coding should be selected before pin count, cable length, or connector orientation.
What M12 Connector Types and Configurations Are Common?
M12 products vary significantly across industrial applications. Understanding these configurations helps prevent incorrect selection and makes it easier to match the connector to signal, data, power, mounting, and routing requirements.
M12 A-Code Connectors
A-coded connectors are widely used for general industrial signals and are commonly associated with sensors and actuators. Different pin counts allow them to support various field devices.
Commercial A-code products include panel-mounted and cable-mounted designs. Some also combine waterproof construction with metal locking components.
M12 D-Code Connectors
D-coded M12 connectors are strongly associated with industrial Ethernet. They provide rugged connections for factory network systems and are useful where Ethernet connections must survive industrial exposure.
M12 X-Code Connectors
X-coded designs address higher data transmission requirements and appear in demanding industrial Ethernet networks. The correct network architecture should determine whether D-code or X-code fits better.
Straight and Right-Angle Connectors
Straight designs work well where cable routing space is available. Right-angle versions help when clearance is limited.
The choice can affect cable stress, installation accessibility, and long-term cable management.
Panel-Mount and Cable-Molded Designs
Panel-mount connectors create interfaces on machines or control enclosures. Cable-molded assemblies provide ready-to-use field connections.
Overmolded designs can improve strain relief around the cable entry and reduce assembly work during machine installation.
How to Choose the Right M12 Connector?
Selecting an M12 Connector requires more than choosing the correct diameter. The entire application should be evaluated first, including electrical function, coding, pin count, environmental conditions, orientation, and maintenance requirements.
Match the Coding to the Function
Start by identifying what the connection carries. Is it transmitting signals, industrial Ethernet, or power? This decision usually narrows the coding choices immediately.
For sensor applications, A-code may be appropriate. For selected Ethernet systems, D-code may be required. Higher-speed network systems may use X-code.
Check Pin Count and Electrical Requirements
Next, determine the required number of contacts and confirm current and voltage requirements. A five-pin M12 connector should not be selected simply because five pins are available. The wiring scheme must match the application.
Important specifications include:
Pin assignment
Rated voltage
Rated current
Contact configuration
Grounding requirements
Consider the Operating Environment
A connector used inside a clean control cabinet has different requirements from one used on outdoor machinery. Environmental factors can strongly affect connector selection.
Evaluate:
Water exposure
Dust levels
Temperature
Chemicals
Vibration
Mechanical stress
For harsh environments, consider waterproof M12 connector designs and check the complete IP rating under actual installation conditions.
Choose the Correct Orientation
Straight connectors are simple and widely available, while angled versions can improve routing inside compact machinery. Panel connections may also require front-mount or rear-mount designs.
The best configuration should reduce unnecessary cable bending and provide enough space for installation and servicing.
Consider Maintenance Requirements
Machine downtime can be expensive, so easy connector access can reduce service time. Engineers should consider how technicians will disconnect equipment later.
A connector that fits during assembly may become difficult to access during maintenance.
Tip: Review installation drawings before finalizing connector orientation and cable length.
Why Choose an M12 Connector for Modern Industrial Applications?
The M12 Connector offers a practical combination of compact size and industrial durability. It can support many factory connection requirements under one familiar connector format.
Reliable Connections in Demanding Conditions
Industrial systems operate under constant mechanical stress. Connectors may face movement, vibration, moisture, and contamination.
Threaded M12 connections help prevent accidental disconnection, while sealed versions provide additional environmental protection.
Flexible Industrial Configurations
M12 products are available in many designs. Users can choose different coding systems, multiple pin counts, male or female connections, straight or angled exits, panel or cable mounting, and molded cable assemblies.
This flexibility supports equipment customization and simplifies integration across different industrial devices.
Support for Smart Manufacturing
Smart factories rely on connected field devices. Sensors generate production information, controllers process it, and networks transmit it across machines and monitoring platforms.
Reliable physical connections remain necessary throughout this process. M12 connectors help connect these industrial endpoints and support sensor networks, automation equipment, and industrial communication systems.
This makes the M12 Connector relevant to both traditional automation and newer connected factories.
M12 Connector Application Summary
Application
Typical Role
Main Selection Focus
Industrial automation
Connects machine devices
Reliability and locking
Sensors
Carries signals and power
Coding and pin count
Robotics
Connects moving equipment
Vibration resistance
Industrial Ethernet
Transfers network data
D-code or X-code
Outdoor machinery
Provides protected connections
IP rating
Compact equipment
Saves installation space
Angled or compact design
Power systems
Carries equipment power
Current and voltage rating
Conclusion
M12 connectors support reliable signal, data, and power connections in modern industrial systems. They are widely used in automation, sensors, robotics, industrial networks, and harsh environments. Suyi Wiring Harness provides customized M12 connector cable assemblies for diverse industrial needs. Its solutions combine reliable connections, flexible cable options, and professional customization services for efficient equipment integration.
FAQ
Q: What is an M12 Connector used for?
A: An M12 Connector connects sensors, actuators, industrial networks, and power devices in automation systems.
Q: Why use an M12 Connector in industrial automation?
A: An M12 Connector offers secure locking, compact size, and reliable performance in harsh environments.
Q: Which M12 Connector is used for Ethernet?
A: D-coded and X-coded M12 connectors are commonly used for industrial Ethernet applications.
Q: Are waterproof M12 connectors expensive?
A: Cost depends on coding, pin count, IP rating, cable length, and customization.
Q: Why does an M12 Connector fail?
A: Common causes include incorrect coding, loose locking, damaged contacts, or unsuitable environmental protection.
