Introduction
Arcade gaming has witnessed a remarkable resurgence in recent years, captivating both nostalgic enthusiasts and a new generation of players. At the heart of every functioning arcade machine lies a critical component: the arcade wire harness. It serves as the nervous system, transmitting electrical signals that enable the machine to operate seamlessly. However, issues with the arcade wire harness can lead to malfunctions, rendering the gaming experience frustrating or impossible. Understanding how to fix these issues is essential for arcade machine owners and technicians alike.
This comprehensive guide delves into the intricacies of arcade wire harnesses, exploring common problems and providing detailed solutions. By mastering the repair techniques discussed, you can maintain the longevity and performance of your arcade machines, ensuring they continue to provide entertainment for years to come. For high-quality replacement parts and custom solutions, consider exploring options like the arcade wire harness offerings from reputable suppliers.
Understanding Arcade Wire Harnesses

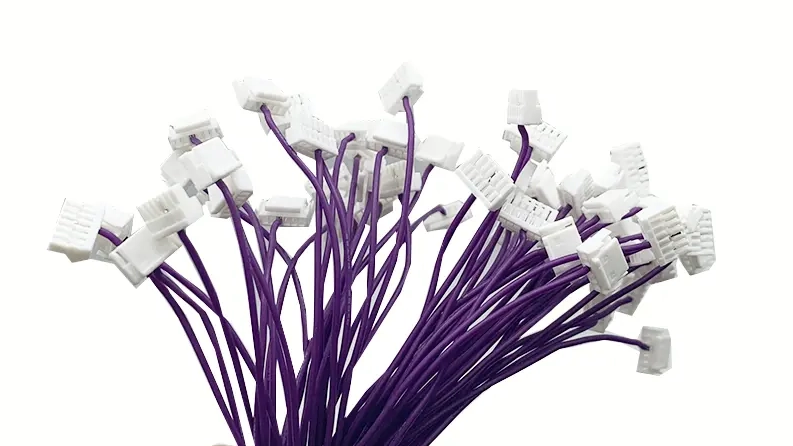

An arcade wire harness is an assembly of wires, cables, and connectors that interlink various components within an arcade machine. It facilitates the transmission of power and data signals between the power supply, control panels, display units, and other electronic parts. The complexity of the harness depends on the machine's design and the number of features it supports.
The harness comprises insulated wires bundled together, often organized with cable ties or sleeves to maintain order and prevent entanglement. Connectors at the ends of the wires interface with specific components, ensuring a secure and reliable connection. Understanding the structure and function of the wire harness is crucial when diagnosing issues or performing repairs.
Components of an Arcade Wire Harness
The key components of an arcade wire harness include:
Wires: Conductive materials, typically copper, that carry electrical currents.
Insulation: Protective coating around wires to prevent short circuits.
Connectors: Interfaces that join wires to components, such as pins, sockets, or plugs.
Sleeves/Ties: Organizational tools that bundle wires neatly.
Each element plays a vital role in the overall functionality of the arcade machine. When any part of the harness fails, it can affect the entire system.
Common Issues with Arcade Wire Harnesses
Arcade wire harnesses, while robust, are susceptible to various issues due to age, wear, and environmental factors. Identifying these common problems is the first step towards effective repair.
Electrical Shorts and Open Circuits
Electrical shorts occur when wires with damaged insulation touch each other or the arcade cabinet, creating unintended pathways for current flow. This can lead to blown fuses or damage to sensitive components. Open circuits happen when a wire is broken or disconnected, interrupting the electrical flow and causing certain functions to cease.
Connector Corrosion and Damage
Connectors can corrode over time, especially in humid environments. Corrosion impedes electrical conductivity, leading to intermittent or complete loss of functionality. Physical damage to connectors, such as bent pins or loose sockets, can also disrupt connections.
Wire Fatigue and Breakage
Repeated movements or vibrations can cause wires to fatigue and eventually break. This issue is common in areas where wires are frequently flexed, such as control panel hinges or door openings.
Insulation Degradation
Over time, the insulation on wires can degrade due to heat, chemical exposure, or age. Damaged insulation increases the risk of shorts and electrical hazards. Regular inspection is essential to catch these issues early.
Diagnosing Wire Harness Issues
Effective troubleshooting requires a systematic approach to identify the root cause of wire harness problems. Utilizing the right tools and techniques can save time and prevent further damage.
Visual Inspection
Begin by visually examining the harness for obvious signs of damage. Look for frayed wires, burnt or discolored areas, damaged connectors, and loose connections. Pay attention to areas where wires pass through metal openings, as grommets may be missing or damaged, allowing wires to rub against sharp edges.
Using Multimeters and Continuity Testers
Electrical testing tools are indispensable for diagnosing issues not visible to the naked eye.
Continuity Test: Checks if a circuit is complete. A broken wire will result in no continuity.
Resistance Measurement: High resistance can indicate corrosion or poor connections.
Voltage Testing: Verifies that the correct voltage is present at various points in the circuit.
By systematically testing each wire and connection, you can pinpoint the exact location of faults.
Identifying Symptoms
Symptoms of wire harness issues can vary depending on the affected circuit:
Display Problems: Flickering screens or no display may indicate issues with video signal wires.
Control Malfunctions: Unresponsive buttons or joysticks can result from faulty input connections.
Audio Issues: Absence of sound or distortion may be due to damaged audio wires.
Power Failures: The machine not powering on often points to main power wire problems.
Understanding these symptoms helps narrow down the troubleshooting process.
Fixing Arcade Wire Harness Issues
Once you've identified the problem areas within the arcade wire harness, it's time to proceed with repairs. The following steps provide detailed guidance on fixing common issues.
Repairing Damaged Wires
For wires that are broken or have compromised insulation:
Disconnect Power: Always ensure the arcade machine is unplugged to prevent electrical hazards.
Remove Damaged Section: Cut out the damaged portion using wire cutters.
Strip the Ends: Use a wire stripper to remove about 0.5 inches of insulation from both ends.
Splice the Wires: Twist the exposed wire ends together or use a butt connector.
Solder the Connection: Apply solder to secure the splice, ensuring good conductivity.
Insulate the Repair: Cover the spliced area with heat-shrink tubing or electrical tape to restore insulation.
Proper splicing restores the integrity of the wire and prevents future issues.
Replacing Connectors and Terminals
Damaged connectors require replacement to ensure a reliable connection.
Identify the Connector Type: Determine the exact type and size to find a suitable replacement.
Remove the Old Connector: Gently extract the pins or sockets using appropriate tools.
Prepare the Wires: Strip insulation as needed and ensure wires are clean.
Attach the New Connector: Crimp or solder the wires to the new connector following manufacturer guidelines.
Test the Connection: Verify continuity before reassembling the machine.
Using high-quality connectors enhances the durability of the repair.
Soldering Techniques
Effective soldering is crucial for secure electrical connections.
Use the Right Equipment: A fine-tipped soldering iron and rosin-core solder are ideal.
Clean Surfaces: Ensure wires and connectors are free from oxidation and dirt.
Apply Heat Properly: Heat the connection point, not the solder. Allow the solder to flow into the joint.
Avoid Cold Joints: A dull, grainy appearance indicates a poor connection. The solder should be shiny and smooth.
Practice on scrap materials if you're new to soldering to develop proficiency.
Safety Precautions
Working on electrical systems requires adherence to safety protocols:
Disconnect Power Sources: Unplug the machine before performing any repairs.
Use Protective Gear: Wear safety glasses and insulated gloves as needed.
Ventilation: Soldering produces fumes; work in a well-ventilated area.
Careful Tool Handling: Be mindful of hot soldering irons and sharp tools.
Following these precautions helps prevent accidents and injuries.
Preventative Maintenance of Wire Harnesses
Regular maintenance extends the lifespan of arcade wire harnesses and reduces the likelihood of unexpected failures.
Regular Inspections
Schedule periodic checks to identify potential issues early. Look for signs of wear, corrosion, or damage. Pay special attention to high-stress areas and connectors.
Proper Installation and Routing
Ensure wires are routed without excessive tension or sharp bends. Use cable ties and sleeves to organize wires neatly, reducing the risk of abrasion or pinching.
Environmental Controls
Protect arcade machines from extreme temperatures, moisture, and dust. Environmental factors can accelerate the degradation of wire harness components.
Use Quality Components
High-quality wires and connectors are more resistant to wear and environmental damage. Investing in superior components reduces maintenance needs and enhances performance.
Upgrading Arcade Wire Harnesses
In some cases, upgrading the wire harness may be more beneficial than repairing individual components, especially for older machines or those undergoing significant modifications.
Benefits of Upgrading
Upgrading provides several advantages:
Improved Reliability: New harnesses eliminate existing faults and reduce future failures.
Enhanced Performance: Modern materials and designs can offer better conductivity and signal integrity.
Customization: Tailored harnesses can accommodate additional features or modifications to the arcade machine.
Simplified Maintenance: Clearly labeled and organized wires make future repairs easier.
Upgrades are particularly beneficial for machines heavily used in commercial settings.
When to Consider Replacement
Consider replacing the wire harness if:
Extensive Damage: Multiple wires and connectors are compromised.
Obsolete Components: Original parts are no longer available or compatible with new features.
Safety Concerns: The existing harness poses a risk due to age or defects.
Upgrading Systems: Implementing new technology or control systems requires a different wiring configuration.
Assess the cost-benefit of replacement versus repair based on these factors.
Choosing the Right Harness
Selecting an appropriate wire harness involves:
Compatibility: Ensure the harness matches the make and model of your arcade machine.
Quality Assurance: Opt for harnesses from reputable manufacturers that meet industry standards.
Customization Needs: If necessary, choose custom-made options to fit specialized requirements.
Supplier Reliability: Purchase from trusted suppliers who offer support and warranties.
Exploring options like a custom arcade wire harness can provide solutions tailored to your specific needs.
Conclusion
Maintaining and repairing arcade wire harnesses is essential for the optimal performance of arcade machines. By understanding common issues and implementing effective repair strategies, owners and technicians can ensure these beloved machines remain operational. Regular maintenance and timely upgrades not only enhance reliability but also extend the life of the equipment. Investing time in mastering these skills contributes to preserving the rich history of arcade gaming for future generations. For high-quality harnesses and professional support, consider partnering with experienced suppliers specializing in arcade wire harness solutions.
Frequently Asked Questions
1. What causes arcade wire harness failures?
Wire harness failures in arcade machines are often caused by factors such as physical wear and tear, environmental conditions like humidity leading to corrosion, electrical overloads, and aging components. Regular use can lead to wire fatigue, while improper maintenance accelerates degradation. Identifying the root cause is crucial for effective repair and prevention of future issues.
2. How can I identify a faulty arcade wire harness?
Identifying a faulty wire harness involves visual inspections for obvious damage, such as frayed wires or burnt connectors. Using a multimeter to test for continuity and proper voltage levels helps locate open circuits or shorts. Symptoms like unresponsive controls, display issues, or power failures often indicate harness problems that require further investigation.
3. Is it better to repair or replace the wire harness?
The decision to repair or replace depends on the extent of the damage. Minor issues like a few broken wires or damaged connectors can be effectively repaired. However, if the harness has widespread damage, obsolete parts, or poses safety risks, replacing it with a new or custom arcade wire harness might be more practical and economical in the long run.
4. Can I upgrade my arcade wire harness for better performance?
Yes, upgrading your wire harness can enhance the performance and reliability of your arcade machine. Modern harnesses may use improved materials and designs that offer better conductivity and durability. Custom harnesses can also be tailored to support additional features or modifications, providing a personalized solution that meets your specific needs.
5. What maintenance practices extend the life of an arcade wire harness?
Regular maintenance practices include routine inspections for signs of wear or damage, proper installation and routing of wires to prevent stress, and keeping the machine in a controlled environment to minimize exposure to harmful elements. Using high-quality components and addressing issues promptly also contribute to extending the harness's lifespan.
6. Where can I find quality replacement parts for my arcade machine?
Quality replacement parts can be sourced from reputable suppliers specializing in arcade machine components. Companies like Dongguan Suyi Electronics Co., Ltd. offer a range of products, including custom arcade wire harness solutions. Purchasing from trusted manufacturers ensures compatibility and reliability.
7. What safety measures should I take when repairing arcade wire harnesses?
Safety measures include disconnecting the power supply before any repairs, using insulated tools, working in a dry and well-ventilated area, and wearing protective equipment like gloves and safety glasses. It's important to follow proper procedures for soldering and handling electrical components to prevent accidents and ensure a safe repair process.
