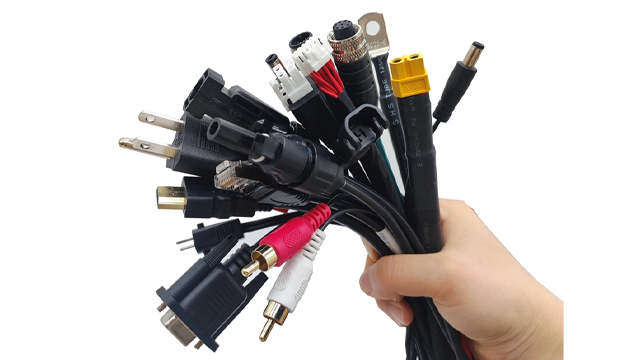

Wiring harnesses come in a wide variety of types, each designed to meet specific functional and structural requirements across different applications. Depending on the use case, wiring harnesses can vary in complexity, size, materials, and configuration to efficiently transmit power and signals in machines ranging from automobiles and drones to battery systems and LED devices.
Classification of wiring harnesses is typically based on their purpose, design structure, and environmental considerations. For example, some harnesses are tailored for high-current power transmission, while others focus on delicate signal control. Structurally, harnesses can be simple cable assemblies or complex multi-branch systems with integrated connectors and protective sleeves.
Understanding the common types of wiring harnesses and their typical applications is essential for selecting the right solution that balances performance, durability, and cost-effectiveness in your specific industry.
Automotive Wiring Harness Types
Modern automobiles contain a complex electrical ecosystem powered and controlled by a wide range of specialized wiring harnesses. Each harness is designed to serve a particular area of the vehicle, ensuring reliable power delivery and signal transmission under demanding operating conditions. The main types of automotive wiring harnesses include:
1. Main Wiring Harness (Main Harness)
The main wiring harness is the central nervous system of the vehicle’s electrical network. It connects the car’s power source (battery and alternator) to critical components like the engine control unit (ECU), fuse box, and power distribution centers. This harness handles both high and low voltage circuits and typically includes multiple connectors and branch lines.
2. Auxiliary Wiring Harness (Sub-Harness)
The auxiliary or sub-harness supports secondary systems such as power windows, door locks, seat heaters, and mirrors. It’s designed for specific zones or features of the vehicle and connects to the main harness while remaining modular for ease of assembly and maintenance.
3. Dashboard or Instrument Panel Harness
The instrument panel harness connects the dashboard electronics—such as speedometers, fuel gauges, climate control systems, and infotainment displays—to the ECU and sensors. It must be compact and well-organized due to space constraints and the need for minimal electromagnetic interference.
4. Lighting Harness
This harness supplies power to headlights, tail lights, fog lamps, and interior lighting. It requires high durability and weatherproof protection, especially for exterior lighting connections exposed to moisture, vibration, and road debris.
5. Engine Wiring Harness
Specifically designed for the engine compartment, this harness connects sensors, ignition coils, fuel injectors, and alternators. It must withstand high temperatures, oil exposure, and vibration, making insulation quality and heat resistance critical.
Choosing the Right Harness Based on Application
Different areas of the vehicle demand different wiring solutions. When selecting or designing automotive wiring harnesses, factors such as temperature range, vibration tolerance, space availability, and functional complexity must be considered. For example, while a dashboard harness prioritizes compact routing and EMI shielding, an engine harness emphasizes thermal durability and connector sealing.
Types of Drone Wiring Harnesses
Drones—also known as unmanned aerial vehicles (UAVs)—require compact, lightweight, and highly efficient wiring harnesses to support their electrical systems. Due to the limited space and weight restrictions, drone harnesses are engineered for high-density integration and minimal mass, while still maintaining robust performance. Below are the main types of wiring harnesses commonly used in drone applications:
1. Power Wiring Harness
The power harness is responsible for distributing electrical energy from the battery to the motors, flight controller, electronic speed controllers (ESCs), and other high-power components. These harnesses use low-resistance wires with sufficient current-carrying capacity, often combined with lightweight insulation and compact connectors to reduce bulk.
Key features include:
2. Signal Wiring Harness
The signal harness transmits control data between various electronic modules, such as GPS units, cameras, telemetry transmitters, and onboard computers. These wires carry low-voltage signals and require shielding or twisted-pair configurations to minimize electromagnetic interference (EMI), which is critical for maintaining signal integrity in real-time operations.
Applications include:
3. Sensor Wiring Harness
Modern drones use a variety of sensors, including gyroscopes, accelerometers, magnetometers, barometers, and obstacle detection sensors. The sensor harness connects these components to the flight controller or onboard processor, enabling accurate data collection and real-time adjustments for stability and navigation.
These harnesses must be:
Lightweight, High-Density Design Considerations
Given the drone’s limited payload capacity, every gram matters. Drone wiring harnesses are designed using:
Harnesses are often customized per drone model to optimize space utilization, airflow, and reliability under dynamic flight conditions.
Types of Battery Wiring Harnesses
Battery-powered systems—ranging from electric vehicles (EVs) and energy storage systems (ESS) to portable electronics—depend on specialized wiring harnesses to safely and efficiently manage power distribution and system monitoring. These harnesses are typically classified into three key types based on their function and voltage level: high-voltage harnesses, low-voltage harnesses, and monitoring harnesses. Each plays a vital role in the performance, safety, and lifespan of the battery system.
1. High-Voltage Wiring Harness
High-voltage (HV) wiring harnesses are used in electric vehicles, industrial battery packs, and large-scale ESS to transfer substantial amounts of electrical power—often above 60V, and up to 800V or more. These harnesses must be:
Constructed with thick-gauge, low-resistance wires
Heat-resistant and flame-retardant, using materials like XLPE or silicone insulation
Well shielded and securely sealed to prevent electrical arcing and ensure user safety
They connect the battery to components such as inverters, motors, and DC/DC converters.
2. Low-Voltage Wiring Harness
Low-voltage (LV) harnesses manage ancillary systems such as battery management units (BMUs), cooling fans, relays, and control circuits. Though they carry less power, they are critical for system functionality and require:
Reliable connectors and EMI shielding
Flexible routing, especially in tight spaces
Lightweight materials to support system efficiency
These harnesses often coexist with HV systems and must be clearly separated or color-coded to avoid confusion during installation or maintenance.
3. Monitoring and Signal Harnesses
These harnesses are designed to relay data from the battery cells to the Battery Management System (BMS). They carry signals for:
Cell voltage measurement
Temperature sensing
Current flow monitoring
Accuracy and low noise are essential, which is why these harnesses use shielded, twisted-pair wires or coaxial designs. Poor signal quality can lead to incorrect SoC (State of Charge) or SoH (State of Health) estimations, affecting performance and safety.
The Role of Safety Standards
Battery wiring harnesses must comply with stringent international safety and performance standards, such as:
UL 94, for flame resistance
ISO 19642, for automotive wiring harness design
RoHS and REACH, for material safety and environmental compliance
These standards influence everything from wire gauge and insulation type to layout design and connector selection. Proper adherence ensures that the harness not only performs reliably but also minimizes fire risk, electrical failure, and environmental harm.
Types of LED Wiring Harnesses
LED lighting systems are widely used across industries—from automotive and consumer electronics to architectural lighting and smart homes. To ensure efficient operation, durability, and ease of installation, LED systems rely on different types of specialized wiring harnesses. These harnesses are typically categorized into flexible wiring harnesses, rigid wiring harnesses, and quick-connect harnesses, each serving different design and performance needs.
1. Flexible Wiring Harnesses (Flexible LED Harness)
Flexible LED harnesses are used where lighting modules must be installed in curved, tight, or irregular spaces—such as under-cabinet lighting, signage, or interior automotive lighting. They offer:
Excellent bendability and routing adaptability
Lightweight construction, ideal for space-limited applications
Protective sheathing for resistance to heat, moisture, and abrasion
These harnesses often come with custom-length wire leads and connectors for fast integration into custom lighting layouts.
2. Rigid Wiring Harnesses (Rigid LED Harness)
Rigid harnesses are typically used in structured lighting installations such as LED streetlights, industrial fixtures, and high-output floodlights. Built with stiffer, more durable materials and often mounted onto metal-core or PCB substrates, they offer:
Stable mechanical support
Long-term reliability in fixed installations
Improved heat dissipation to protect LED circuitry
These harnesses ensure robust electrical connections in environments that experience vibration, weather exposure, or temperature fluctuations.
3. Quick-Connect Wiring Harnesses
Quick-connect harnesses are designed for modular lighting systems or applications that require frequent assembly/disassembly. They feature:
Plug-and-play connectors (such as JST, Molex, or waterproof DC jacks)
Polarity protection and secure locking mechanisms
Reduced installation time, especially in commercial lighting or field maintenance
These harnesses are especially useful in LED displays, outdoor signage, or rental lighting systems, where reliability and convenience are both priorities.
Matching Harnesses to Lighting and Control Systems
Choosing the right harness type depends on the specific lighting fixture design, control protocol (PWM, DALI, DMX), and installation environment. For instance:
RGB or smart lighting setups require harnesses that support multi-channel signal control
Outdoor installations may need IP-rated waterproof harnesses
Smart home or IoT systems may benefit from low-voltage, flexible harnesses with sensor signal paths
Conclusion: Choosing the Right Wiring Harness for Optimal System Performance
Each application—whether in automotive systems, drones, batteries, or LED lighting—has unique electrical, mechanical, and environmental requirements. Selecting the appropriate type of wiring harness based on these needs is essential for ensuring reliable performance, safety, and ease of maintenance.
From flexible and high-density designs for drones and LEDs to high-voltage and monitored harnesses for battery systems, and robust multi-branch harnesses for vehicles—each configuration must be tailored to fit the specific demands of the equipment it supports.
Dongguan Suyi Electronics Co., Ltd. offers a wide range of customized wiring harness solutions to meet the diverse needs of modern machines and electronic devices. With strong R&D capabilities, precise manufacturing standards, and a commitment to quality, Suyi ensures that every harness is built to perform and last.
To explore their full product lineup or request a tailored solution, visit www.suyiwiringharness.com and get in touch with their expert team today.
