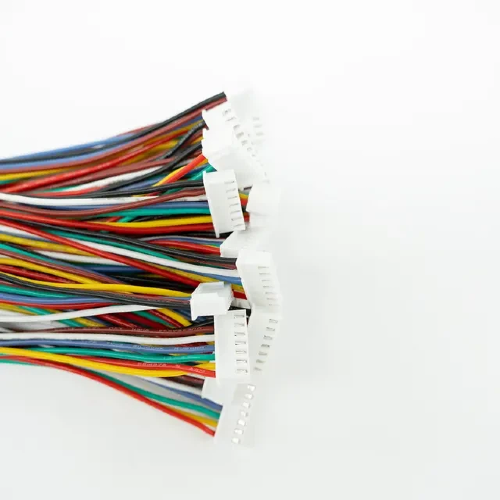

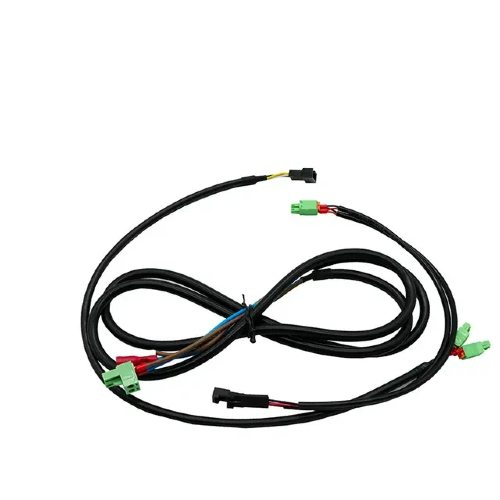

Wire harnesses are essential components in almost every electrical system, organizing and protecting cables, wires, and connections. Custom wire harnesses are particularly important because they are designed to meet the unique needs of a specific application. Whether it’s in the automotive, aerospace, industrial, or consumer electronics industries, custom wire harnesses ensure reliable performance, safety, and durability.
This article will guide you through the custom wire harness manufacturing process and provide the necessary information that buyers should know to make informed decisions. From design to final delivery, understanding each step will help you choose the right custom wire harness for your needs.
1. Initial Design and Planning: Understanding Your Needs
Before starting the manufacturing process, the design and planning stage is crucial for ensuring that the wire harness meets the specific requirements of the application. This phase involves understanding the technical needs, environment, and functional specifications.
1.1 Defining Project Requirements
The first step in the process is understanding the project requirements for the custom wire harness. This includes:
Application Type: Whether the harness will be used in automotive, industrial machinery, consumer electronics, or other sectors. Each of these applications has different electrical needs.
Electrical Needs: Determining factors like voltage, current, signal types (analog or digital), and any specific power requirements. These details help in choosing the right wire gauge, insulation material, and connectors.
Environmental Conditions: The environment in which the wire harness will operate is another critical factor. Conditions such as temperature fluctuations, moisture, exposure to chemicals, and mechanical stresses must be considered to ensure the wire harness performs reliably.
Space Constraints: Some systems have limited space where the wire harness must fit, so custom designs should account for compactness and ease of installation.
1.2 Design Considerations
Once the requirements are understood, the actual design of the wire harness can begin. This includes:
Wire Material: Choosing the right wire materials (e.g., copper, aluminum) based on conductivity, weight, and cost considerations.
Wire Gauge: Selecting the appropriate gauge (thickness) of wire for the required power and signal transmission.
Insulation: Custom wire harness designs often use specialized insulation materials (e.g., PVC, silicone, Teflon) to provide protection against environmental conditions such as high temperatures, moisture, or chemicals.
Connectors and Terminals: The choice of connectors is critical for the functionality of the wire harness. Waterproof connectors, locking connectors, and standard connectors are some options, depending on the environmental needs.
Table 1: Key Design Considerations for Custom Wire Harnesses
Design Element | Key Considerations | Example Materials |
Wire Material | Conductivity, flexibility, cost | Copper, Aluminum, Teflon |
Wire Gauge | Based on power or signal requirements | 18 AWG, 22 AWG, 24 AWG |
Insulation Material | Protection from environmental factors like heat or chemicals | PVC, Silicone, Teflon |
Connectors/Terminals | Type of connector needed based on application (e.g., waterproof, locking) | Molex, JST, waterproof connectors |
2. Material Selection: Key to Durability and Performance
Choosing the correct materials is a fundamental part of the custom wire harness manufacturing process. The materials used in the wire, insulation, and connectors will have a significant impact on the performance, safety, and durability of the final product.
2.1 Wire Materials
The wire material you choose plays a major role in determining the conductivity, flexibility, and overall cost of the harness. The two most common materials used in wire harnesses are copper and aluminum:
Copper is highly conductive, which makes it the preferred choice for most wire harness applications.
Aluminum, while less conductive than copper, is lighter and more cost-effective, making it a good option for applications where weight is a concern.
2.2 Insulation Materials
Insulation protects the wire and ensures that electrical connections are safe and reliable. The insulation material must be selected based on several factors:
Temperature Resistance: Some applications, like automotive or aerospace, require wire harnesses that can withstand extreme temperatures.
Chemical Resistance: For industrial or outdoor applications, wire harnesses need to be protected from exposure to moisture, oils, or other chemicals.
Flexibility and Durability: In applications where the wire harness will undergo constant movement, like robotics or machinery, flexible insulation is necessary.
Common insulation materials include:
PVC: General-purpose insulation with moderate temperature resistance.
Silicone: Flexible and heat-resistant insulation, ideal for automotive and high-temperature applications.
Teflon: High-performance insulation material for extreme conditions, such as aerospace and industrial equipment.
Table 2: Common Insulation Materials and Their Applications
Insulation Material | Temperature Resistance | Key Applications |
PVC | -20°C to 105°C | General-purpose wiring, cost-effective solutions |
Silicone Rubber | -50°C to 200°C | Automotive, industrial machinery, flexible wiring |
Teflon | -200°C to 250°C | Aerospace, high-temperature environments |
2.3 Connectors and Terminals
Connectors and terminals are critical to ensuring that the wire harness functions properly. Choosing the right connector depends on the environmental conditions, required current, and space constraints. Some common options include:
Waterproof connectors for applications exposed to water or humidity.
Locking connectors for high-vibration environments to ensure secure connections.
Quick-disconnect connectors for ease of assembly and maintenance.
3. Prototyping: Testing the Design Before Full Production
After the initial design and material selection, a prototype of the custom wire harness is created. Prototyping helps ensure that the design meets the required specifications before large-scale production begins.
3.1 Creating Prototypes
A prototype allows manufacturers to test the wire harness’s design, ensuring it works as expected. This phase also helps detect potential issues with the design that might not have been identified during the planning phase. The prototype is built using the selected materials, and the wire harness is assembled according to the specified layout.
3.2 Testing Prototypes
Once the prototype is built, it undergoes rigorous testing to ensure that it meets the desired performance standards. Some tests include:
Electrical Testing: This includes testing for continuity, insulation resistance, and voltage drop to ensure that the wire harness is capable of handling the required power and signals.
Mechanical Testing: Testing for flexibility, tensile strength, and the ability to withstand physical stress (such as bending or pulling).
Environmental Testing: Assessing how the wire harness performs under various environmental conditions like temperature changes, exposure to moisture, and vibration.
3.3 Adjustments Based on Prototyping
Once the prototype is tested, adjustments may be made to improve the design. This could include changes in the wire gauge, insulation material, or connector type. If issues arise during testing, the design team will address them before moving to full production.
4. Manufacturing Process: From Design to Final Product
After the prototype is validated, the manufacturing process can begin. This stage involves the actual production of the custom wire harness, including wire cutting, stripping, crimping, and assembly.
4.1 Wire Cutting and Stripping
The first step in the manufacturing process is cutting the wires to the correct length based on the final design. After the wire is cut, insulation stripping is performed to expose the wire ends where connectors and terminals will be attached.
4.2 Crimping and Soldering
Crimping and soldering are methods used to attach connectors to the wire. Crimping involves using a special tool to press the terminal onto the wire, creating a secure electrical connection. Soldering, on the other hand, uses heat to melt a metal filler and create a solid joint. Both techniques are important for ensuring the reliability of the electrical connections.
4.3 Assembly and Bundling
After the wires are cut, stripped, and connected, they are bundled and organized into the final wire harness assembly. Cable ties, clips, and sleeving may be used to keep the wires together, preventing tangling and providing additional protection against environmental factors like abrasion.
4.4 Quality Control
Once the wire harness is assembled, it undergoes a thorough quality control process. Each component is inspected for defects, and the harness is tested for proper electrical performance and mechanical strength. Manufacturers also ensure that the wire harness complies with relevant industry standards (e.g., UL, RoHS, ISO).
5. Final Testing and Delivery: Ensuring Reliability
Once the wire harness has passed the final assembly and quality control processes, it undergoes final testing to ensure that it meets all required specifications.
5.1 Electrical and Mechanical Testing
The wire harness is subject to further electrical testing to check for continuity, insulation resistance, and electrical performance. Mechanical tests are also conducted to assess its flexibility, strength, and ability to endure environmental conditions.
5.2 Packaging and Shipping
After the wire harness has been thoroughly tested, it is carefully packaged to prevent damage during transport. The packaging is designed to protect the harness from physical damage, moisture, and environmental contaminants.
5.3 Post-Delivery Support
Many manufacturers offer post-delivery support, including warranties and maintenance services. This ensures that if any issues arise after delivery, the manufacturer will provide assistance, repairs, or replacements as needed.
6. Conclusion
The custom wire harness manufacturing process is essential for creating reliable electrical systems that perform efficiently, safely, and with long-lasting durability. From the initial design and planning to material selection, prototyping, and final delivery, every step in the process ensures that the wire harness meets the exact specifications of the application.
By understanding this intricate process and collaborating with experienced manufacturers, businesses can secure high-quality, tailor-made wire harnesses that optimize performance and meet their unique needs.
If you're looking for a trusted partner to deliver custom wire harnesses that exceed industry standards, Dongguan Suyi Electronics Co., Ltd. is an excellent choice. With years of expertise in the field, Suyi offers precision-engineered wire harnesses suitable for a wide range of applications, from automotive to industrial and consumer electronics. Their dedicated team ensures that every product is crafted with attention to detail, ensuring reliability and safety.
Contact Dongguan Suyi Electronics today to discuss your project needs and discover how they can help bring your wire harness designs to life with unmatched quality and efficiency.
7. FAQ
1. What is a custom wire harness, and why do I need one?
A custom wire harness is a bundle of wires, connectors, and components designed to meet the specific electrical needs of a particular system. It is essential for organizing wires, reducing the risk of errors, and ensuring the system functions safely and efficiently.
2. How do I choose the right materials for my custom wire harness?
Choosing the right materials depends on the application. Copper is commonly used for its excellent conductivity, while insulation materials like PVC, silicone, or Teflon provide protection against environmental factors like temperature and chemicals.
3. How is a custom wire harness tested during the manufacturing process?
Custom wire harnesses undergo electrical testing (continuity, resistance), mechanical testing (flexibility, tensile strength), and environmental testing (temperature, moisture, vibration) to ensure reliability and durability.
4. How long does it take to manufacture a custom wire harness?
The time required to manufacture a custom wire harness depends on the complexity of the design, material availability, and order size. Typically, the process can take anywhere from a few days to several weeks.
5. Can I get a custom wire harness that meets my specific design needs?
Yes, custom wire harness manufacturers work with clients to understand their requirements and provide tailored solutions to meet specific electrical, environmental, and functional needs.
